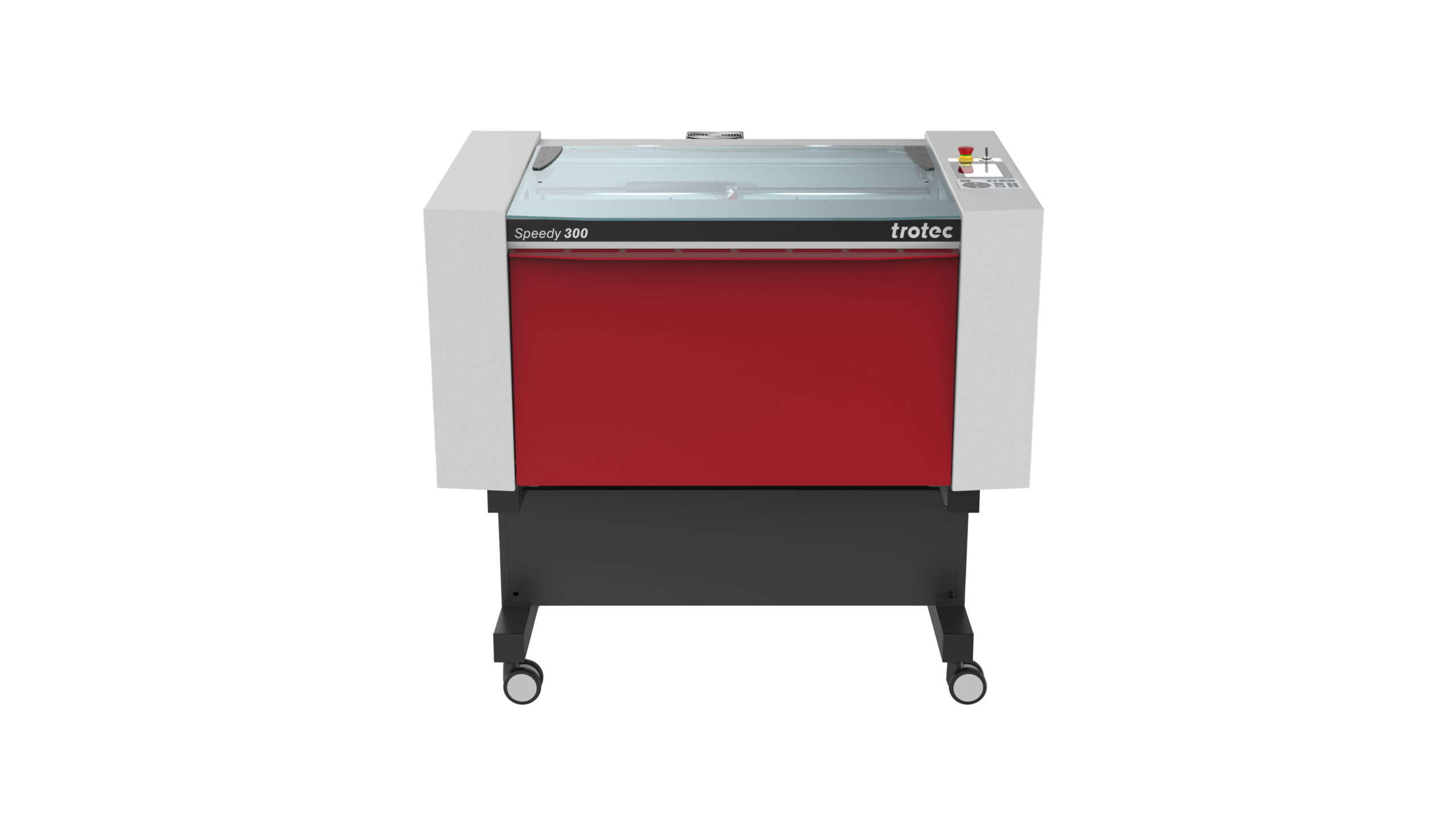

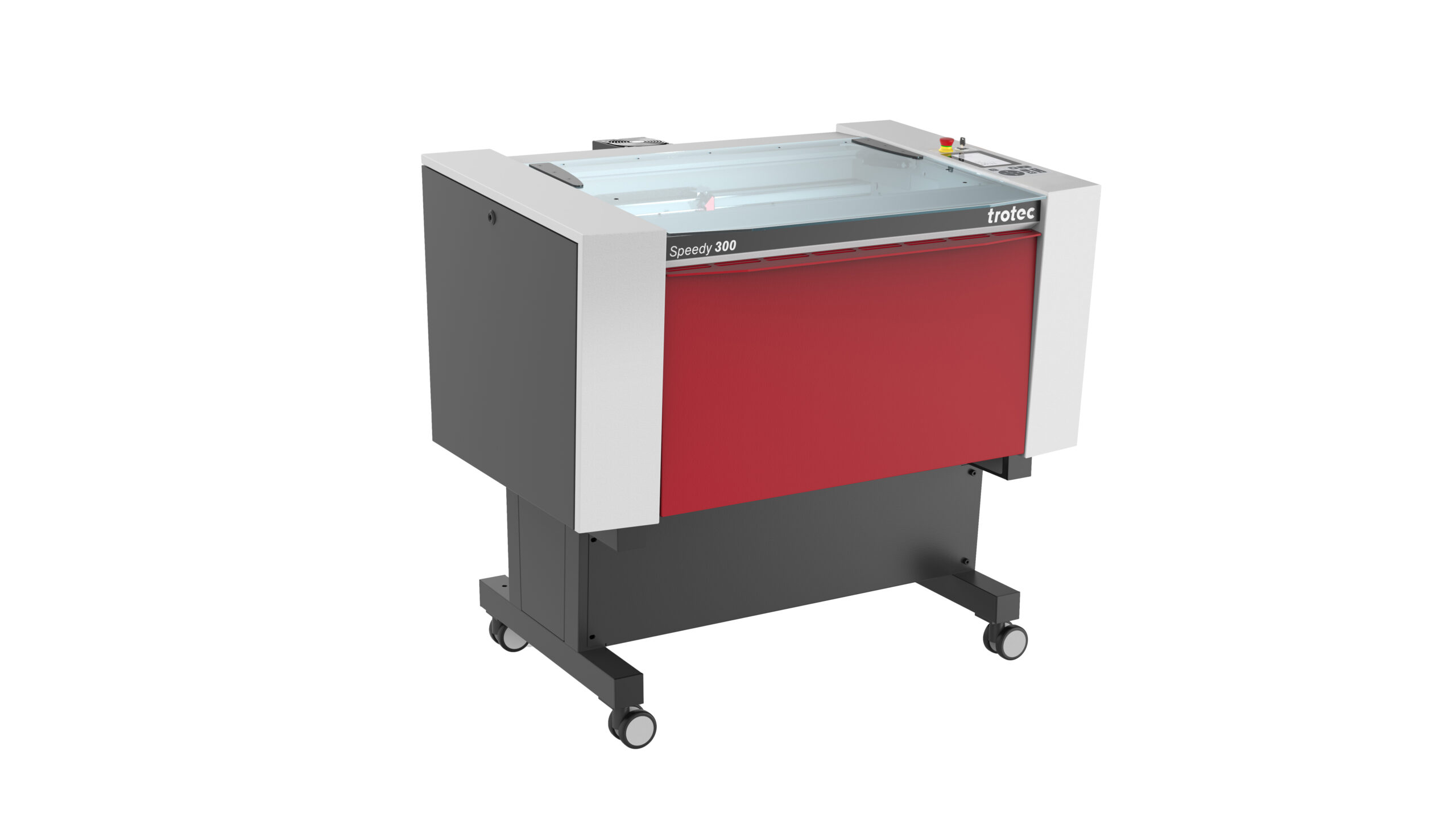

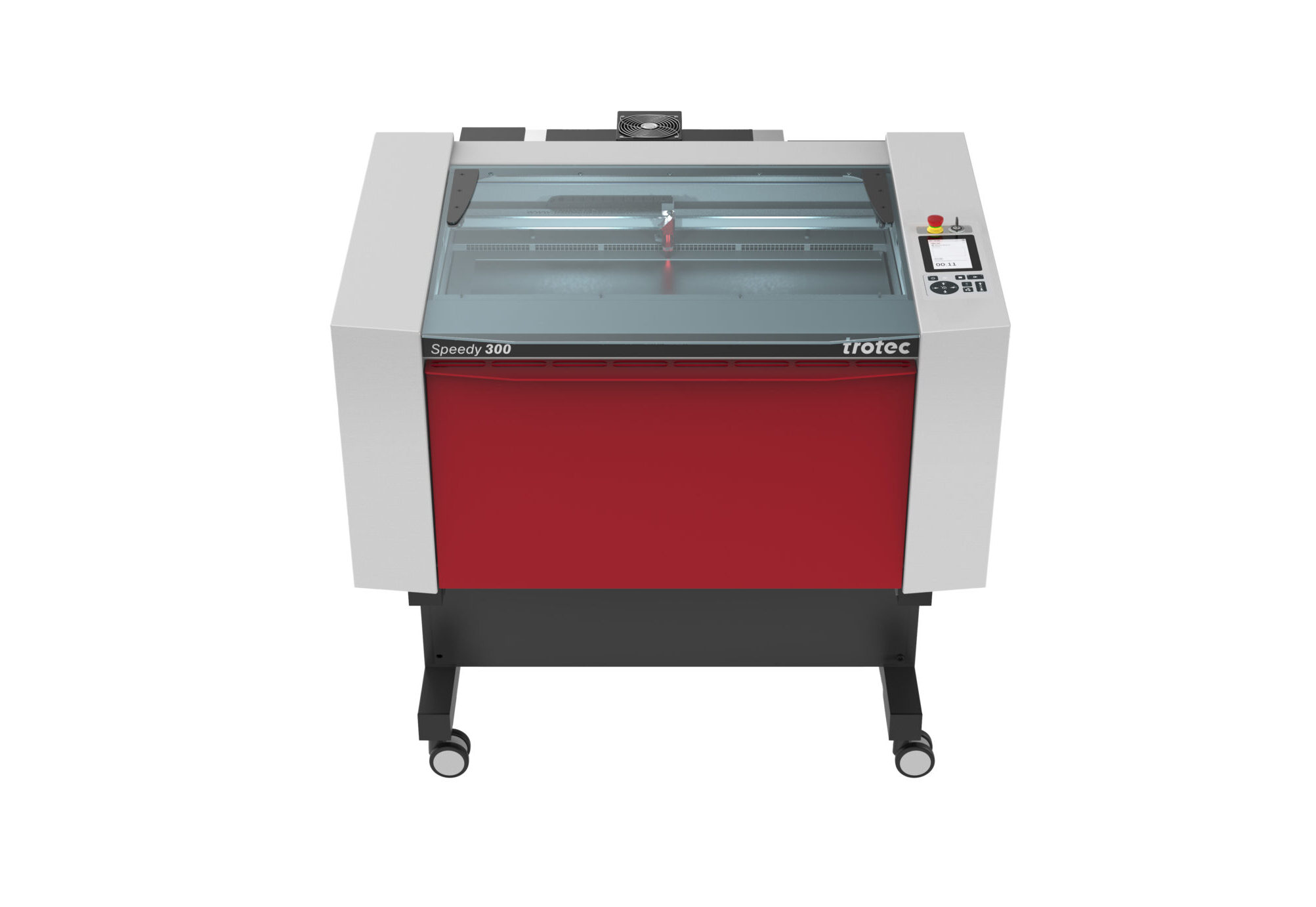

Trotec Speedy 300 – fast engraving and cutting CO2 laser

Technical parameters
  • Class 2 CO2 laser with 50, 80 and 120 W power
  • max. engraving area: 726 x 432 mm
  • max. engraving speed: 355 cm/s
  • max. object height: 200 mm (with 1.5″ lens)



Additional parameters
  • brushless maintenance-free servomotors
  • external dimensions: 1130 x 943 x 596 mm
  • max. working capacity table: 20 kg
  • control: PC with Win 10 or 11

Laser Speedy 300 for engravers and stamp manufacturers with medium and higher volume of production. With a maximum engraving speed of 355 cm/s, it is one of the fastest engravers in the category of lasers with a moving head on the market. It allows you to cut or engrave most materials such as wood, rubber, plastics, glass, stone, leather and the like. These lasers are suitable for describing advertising items, trophies and awards, for the production of orientation systems or for cutting architectural models from wood or acrylic. A vacuum table can be used for engraving and cutting thin films.

Productivity over many years.

The Trotec Speedy 300 CO2 laser is a laser machine that meets the highest demands. Depending on the requirement, it can be used as a laser engraver or a laser cutting machine. Speedy 300 presents an innovative design using the highest quality components, now with completely new electronics. Laser Speedy 300 offers unattainable reliability and maximum productivity over many years.

Option to upgrade to the flexx version for maximum flexibility.

Each Speedy 300 can be equipped with an additional laser source at any time and thus be upgraded to the Speedy 300 flexx version. As a result, your Trotec laser grows with the success of your business – you can decide for yourself when!

Run On Ruby

The Speedy 300 connects to your computer network via Ethernet and no longer requires a USB connection to your PC. The integrated touchscreen allows you to intuitively control the laser directly from the machine. Access all your laser jobs directly on the machine and start them right away.

THE LASER YOU DON’T HAVE TO BUY!

You can rent the Speedy 300 with a power of 80W for a month, a year or 4 years, including a professional extraction device. Insurance and functionality guarantee for free for the entire rental period! After the end of the lease, you can decide on a new lease – or buy the machine.

standard accessories:

  • control program JobControl or Ruby
  • Air assist – blowing of the work surface
  • Autofocus – software focusing
  • laser pointer
  • metal table
  • electronically controlled Z axis
  • Honeycomb cutting table (recommended for cutting)
  • lens 2.0″
  • trolley for the laser
  • increased protection against dust
  • LED lighting of the work surface
  • training in the operation and maintenance of the engraver when taking over the equipment at Megaflex

optional items:

  • electronically controlled extraction device Atmos Mono or Pure
  • vent (suitable for extracting sticky dust, typically generated during engraving and cutting wood)
  • pre-filter with manual or automatic cleaning
  • rotary attachment with cones for engraving cylindrical objects around the perimeter
  • transportation to the customer (including training): price according to the distance from the MEGAFLEX headquarters at a price of CZK 19/km

You can arrange a lease for a fixed period of time:

  • 48 consecutive calendar months
  • 12 consecutive calendar months
  • 1 calendar month

Rental price from 592 CZK per calendar day.

After the end of the lease, you can decide on a new lease – or buy the machine.

The rent includes a full and free service with a guarantee of machine function within 3 days and the usual equipment insurance.

The lessee has the right to terminate the contract at any time, even without giving a reason, within a three-month period.

Installation and startup does not require any special skills or knowledge and can be easily done by any more experienced computer user. But you can also have it installed by us.

Please contact us for details and possibly filling out your equipment rental contract.

Standard equipment

Improves the laser engraving on many materials while also protecting the optics of the laser engraving machine.

Learn more
Light barriers for optimal adjustment of working height and focusing.

Learn more
The resonator body where the laser radiation is generated is made of 100% ceramic. CeramiCore® stands for reliability, high engraving quality and longevity.

Learn more
The working table is ferro-magnetic over the entire surface. This means that you can simply use magnets to hold thin materials, such as paper, foils or films, in place.

Learn more

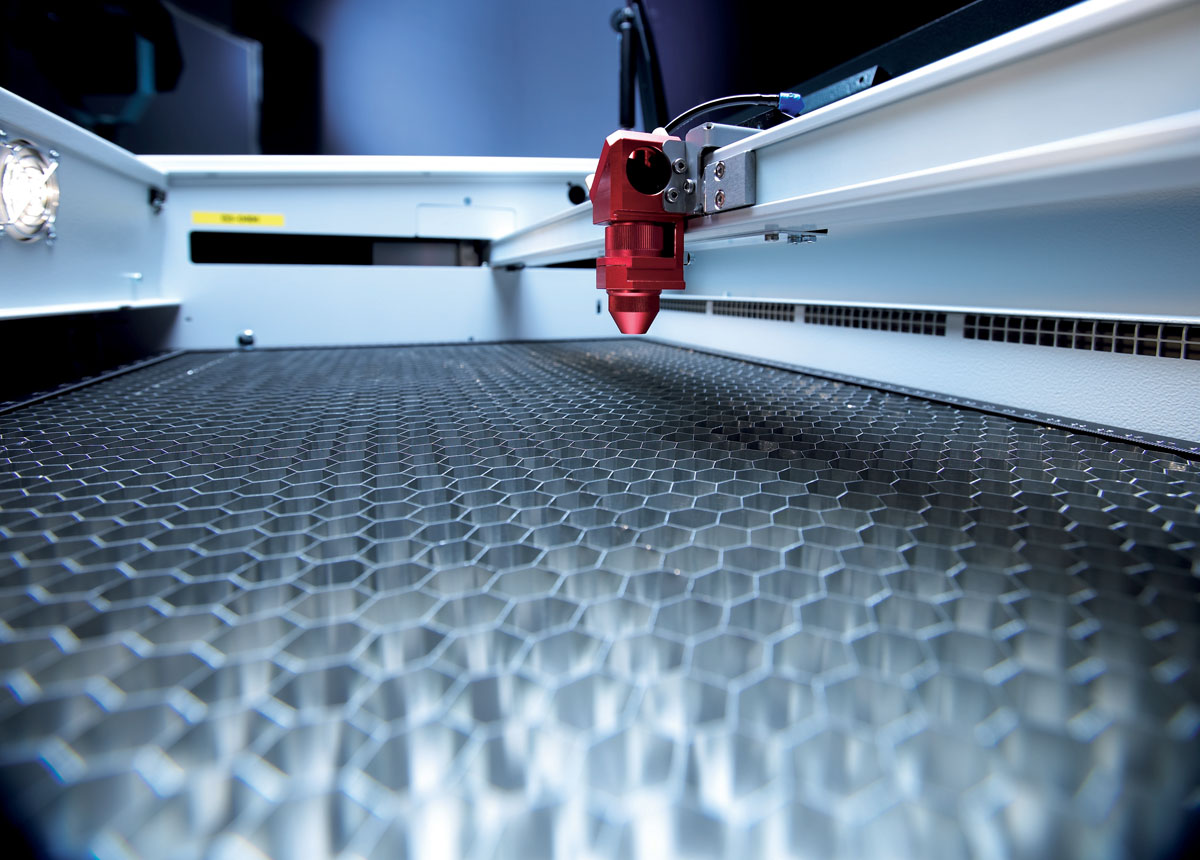

A Honeycomb cutting table can optionally be used when dividing materials. The use of a cutting table reduces back reflections from the work table, which can cause damage to the lower part of the material being cut.

Learn more
Provides optimum protection against dust penetration as it seals the engraving compartment.

Learn more
Ensures higher productivity and lower running costs thanks to minimum maintenance and optimal protection against dust.

Learn more
The laser pointer indicates exactly by a red dot where the beam of the laser machine will hit the material.

Learn more
OptiMotionTM - record cutting speed Using OptiMotion™ technology, cutting speed and acceleration are calculated based on real-time geometry. This is…

Learn more
Trotec Ruby is a new software platform and provides a new user interface. Use the integrated workflow to create graphics,…

Learn more
Using the integrated touch screen, the laser can now be intuitively controlled directly from it. Access all your laser jobs…

Learn more
The trolley table converts your Speedy into a standing unit. Also available with storage shelf for essential materials.

Learn more

Optional accessories

Improves the laser engraving on many materials while also protecting the optics of the laser engraving machine.

Learn more
The extraction device Trotec Atmos Pure 300 is designed for Trotec lasers. The extraction activity is monitored and the operator…

Learn more
The extraction device Trotec Atmos Pure 600 is equipped with two turbines and is intended for Trotec Speedy 360, Speedy…

Learn more
A universal self-centering chuck that is adapted for mounting on a standard Trotec rotator. The chuck allows not only direct clamping of objects, but also various adapters, holders, etc.

Learn more
Find the right lens for achieving optimal results during laser engraving or laser cutting with Trotec laser machines.

Learn more
The mechanical pre-filter for the laser is especially suitable for manufacturers of stamping plates. A passive device with a high degree of filtration is connected between the laser and the extractor and its task is to capture as much dust as possible and thus extend the life of the main mechanical filter in the extractor.

Learn more
Prefilters: Pre-separators for high-dust laser engraving and cutting applications Trotec offers an exhaust system specially designed for engraving or cutting…

Learn more

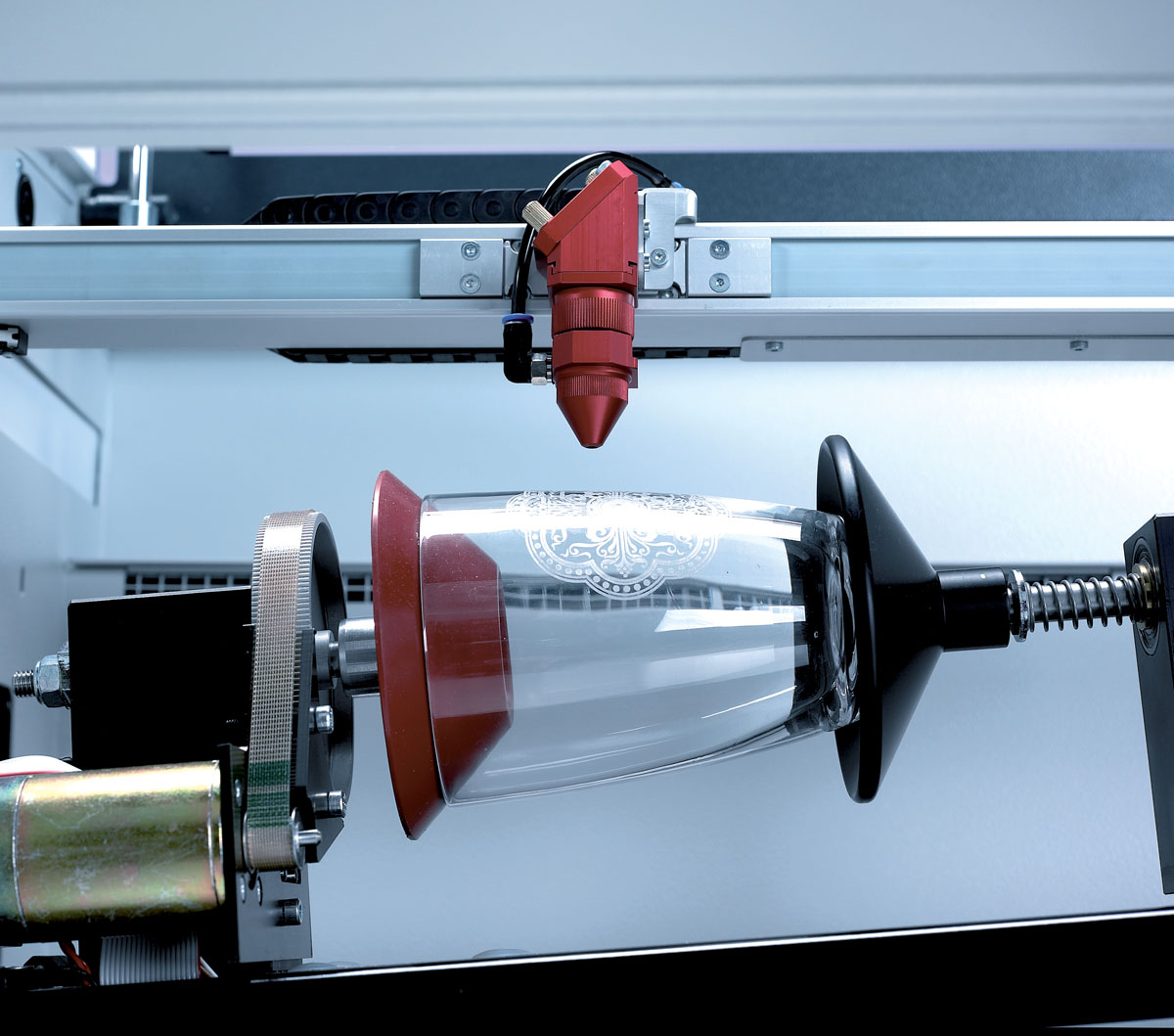

Is required for laser engraving round, cylindrical and conical objects, such as glasses or bottles. Simply insert it in the engraving compartment and attach.

Learn more
Monitors the temperature in the engraving compartment and thus reduces the flame risk during laser cutting.

Learn more
Perfect cutting of printed materials with the help of a camera system and detection of registration marks.

Learn more
The vacuum table holds the material in place on the work table and reduces the handling effort during fastening of the material.

Learn more
The Trotec Vent series has been designed as a simple extraction system for specific configurations of laser machines. They guarantee…

Learn more
The water cooler prevents the laser performance from fluctuating in difficult climatic conditions.

Learn more
